Understanding SolidCAM Post Processors | The Key to Reliable CNC Programming

If you’re using SolidCAM for CNC programming, understanding how SolidCAM post processors work is essential to achieving accurate, efficient, and machine-ready G-code. The post processor easily translates your CAM toolpaths into a language that your machine understands.

It doesn’t matter if you’re running a 3-axis mill or a complex Swiss-type lathe; a proper SolidCAM post processor can have you machining better than ever. Our team of experts provides machine-specific post development for 3-axis up to 5-axis machines, including Swiss-type turning centers.

What Is a SolidCAM Post Processor?

A SolidCAM post processor is a set of files and logic that converts toolpath data into G-code tailored to your specific CNC machine. These files work together to ensure that your toolpaths are not only accurate but also compatible with your machine’s capabilities.

SolidCAM’s post-processing system is built around two core components:

• GPP (.gpp): The post processor logic file
• VMID (.vmid): The virtual machine configuration file

VMID File: Virtual Machine Configuration

When you set up a CAM-Part in SolidCAM, the VMID ensures that simulations and toolpath calculations reflect your actual machine’s configuration. This helps prevent crashes, tool breakage, and inefficient machining.

The VMID file defines your CNC machine’s virtual representation, including:

• Axes, spindles, and rotary tables
• Device limits and coordinate systems
• Controller capabilities and safety protocols

GPP File: Post Processor Logic

The GPP file uses GPPL (Generic Post Processor Language) to format toolpath data into G-code. It applies logic and syntax rules based on your machine’s constraints, ensuring that the output is correct and optimized.

GPP files are editable using any text editor or SolidCAM’s built-in GPPTool, allowing for customization to meet shop standards or controller-specific requirements.

What is the GPPTool?

The GPPTool is SolidCAM’s included post processor editor and does not require a separate installation. It allows you to define pre-processor parameters, modify G-code formatting, and create fully custom post processors. The changes you make in GPPTool influence toolpath generation and can help create posts for complex CNC setups.

SolidCAM post processor creation with GPPTool

Why SolidCAM Post Processors Matter

Using a generic or poorly configured post-processor can lead to a multitude of issues. To start, inefficient toolpaths can result in longer cycle times that slow down production in your shop. Worse than that, a post processor that is not set up correctly can often cause machine crashes and tool damage due to excessive wear or inaccurate movements. In the event that these issues are spotted early, a machine operator would have to manually edit the G-code, further slowing down production.

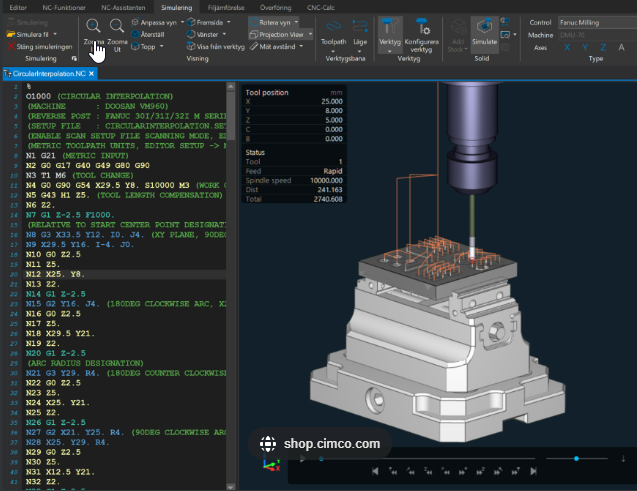

Manually editing the post in the CIMCO editor

A well-configured SolidCAM post processor ensures that your CAM operations are fully associative with your CAD model, automatically updating toolpaths when design changes occur. It also enables accurate simulation and verification before sending code to the machine, resulting in saved time and reduced errors.

Need a Custom SolidCAM Post Processor?

While SolidCAM provides powerful tools for post-processing, creating a custom post processor that matches your exact machine configuration requires expertise. That’s where TriMech comes in. Our team of experts provides machine-specific post development for 3-axis up to 5-axis machines, including Swiss-type turning centers. The posts also include support for advanced SolidCAM features so you can leverage the patented iMachining technology in your programming workflow.

Finally, our post processor development services include ongoing support so your post processors can evolve with your business.  TriMech’s custom SolidCAM posts eliminate guesswork and deliver optimized, reliable G-code every time.

Ready to improve your CNC programming workflow with a custom SolidCAM post processor? Request a quote here.
